Bombardier Lear 60 – Blusky

Bombardier

Lear 60

Production Years 1992 - 2007

Aircraft Produced 316

Active Fleet 251

Fleet in Brazil 5

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	7
Maximum Passenger Capacity	9
Single Pilot	No

External dimensions
Length	17.89 m
Height	4.45 m
Wingspan	13.35 m

External dimensions
Length	58.7 ft
Height	14.6 ft
Wingspan	43.8 ft

External dimensions
Length	17.89 m
Height	4.45 m
Wingspan	13.35 m

Cabin dimensions
Length	4.81 m
Height	1.73 m
Width	1.79 m
Flat Floor	No

Cabin dimensions
Length	15.8 ft
Height	5.7 ft
Width	5.9 ft
Flat Floor	No

Cabin dimensions
Length	4.81 m
Height	1.73 m
Width	1.79 m
Flat Floor	No

Luggage capacity
Internal Baggage Volume	878 L
Internal Baggage Weight	159 kg
External Baggage Volume	680 L
External Baggage Weight	136 kg

Luggage capacity
Internal Baggage Volume	31 ft³
Internal Baggage Weight	350 lb
External Baggage Volume	24 ft³
External Baggage Weight	300 lb

Luggage capacity
Internal Baggage Volume	878 L
Internal Baggage Weight	159 kg
External Baggage Volume	680 L
External Baggage Weight	136 kg

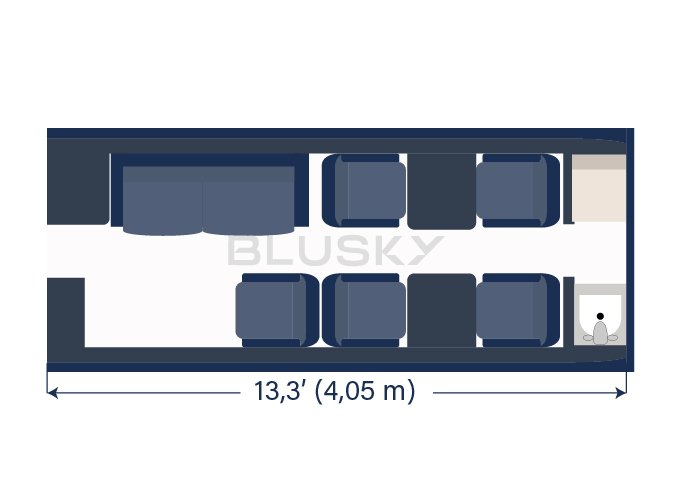

Floor Plan

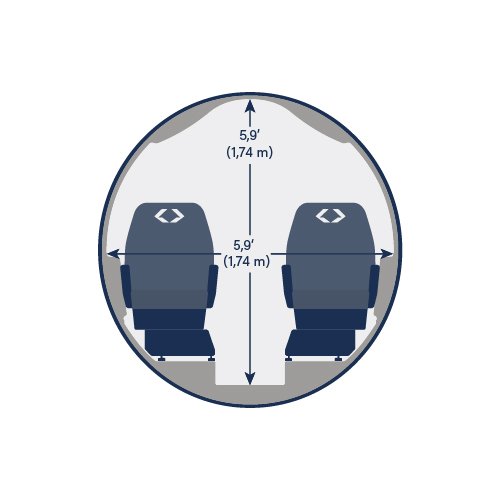

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Pratt & Whitney
Model	PW305A
Thrust	4600 lb
TBO	6000h
Flat Rating	ISA+17°C

Weights and limits
Maximum Takeoff Weight	10659 kg
Maximum Payload	954 kg
Maximum Fuel Capacity	3588 kg
Payload with Full Fuel	484 kg
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Weights and limits
Maximum Takeoff Weight	23500 lb
Maximum Payload	2104 lb
Maximum Fuel Capacity	7910 lb
Payload with Full Fuel	1068 lb
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Weights and limits
Maximum Takeoff Weight	10659 kg
Maximum Payload	954 kg
Maximum Fuel Capacity	3588 kg
Payload with Full Fuel	484 kg
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Speeds
Long-Range Cruise	782 km/h
High-Speed Cruise	839 km/h

Speeds
Long-Range Cruise	422 kt
High-Speed Cruise	453 kt

Speeds
Long-Range Cruise	782 km/h
High-Speed Cruise	839 km/h

Consumption
Long-Range Cruise	507 kg/h
High-Speed Cruise	620 kg/h

Consumption
Long-Range Cruise	1118 lb/h
High-Speed Cruise	1366 lb/h

Consumption
Long-Range Cruise	507 kg/h
High-Speed Cruise	620 kg/h

Performance

Range	2310 mn
Takeoff Distance - Sea Level	1661 m
Takeoff Distance - Hot and High	2597 m
Landing Distance	917 m
Maximum Operating Altitude	15545 m

Range	2310 mn
Takeoff Distance - Sea Level	5450 ft
Takeoff Distance - Hot and High	8520 ft
Landing Distance	3009 ft
Maximum Operating Altitude	51000 ft

Range	2310 mn
Takeoff Distance - Sea Level	1661 m
Takeoff Distance - Hot and High	2597 m
Landing Distance	917 m
Maximum Operating Altitude	51000 ft

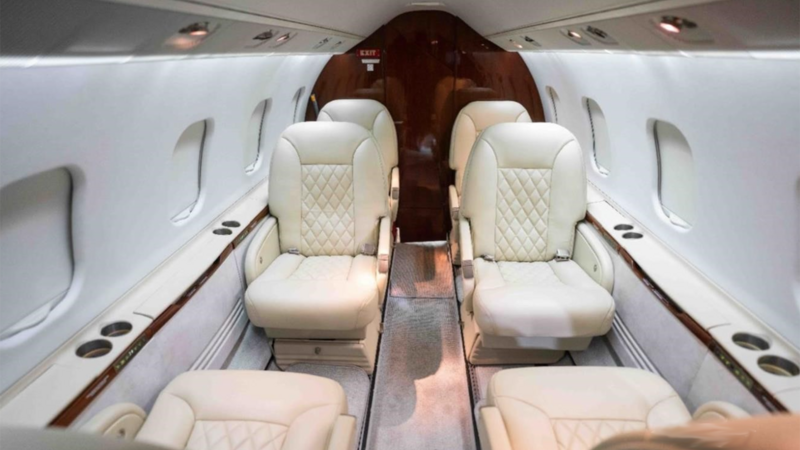

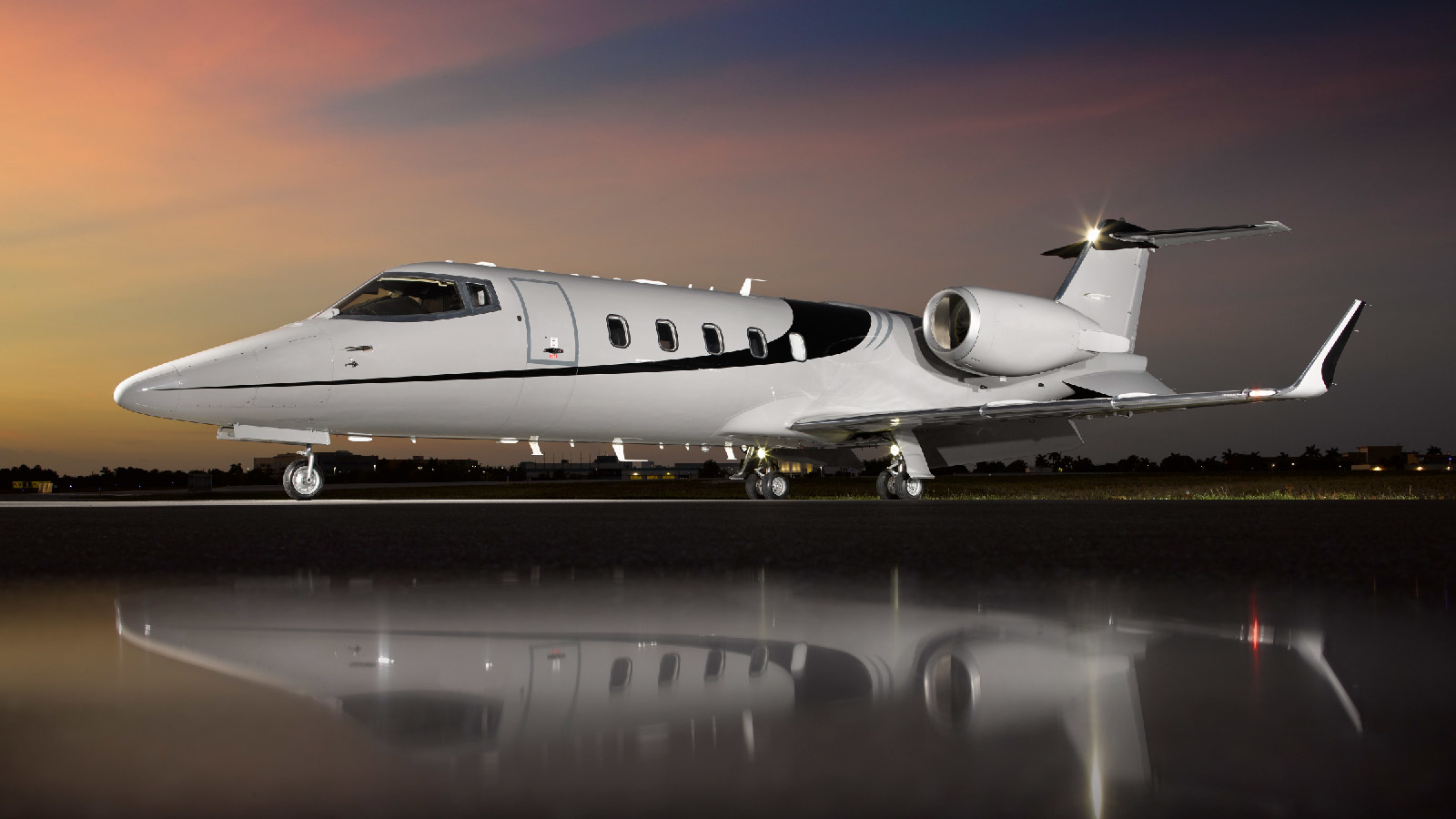

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6,000 nm - 8 passengers for aircraft with a range over 6,000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
