Bombardier Lear 70 – Blusky

Bombardier

Lear 70

Production Years 2013 - 2017

Aircraft Produced 14

Active Fleet 14

Fleet in Brazil -

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	6
Maximum Passenger Capacity	7
Single Pilot	No

External dimensions
Length	17.06 m
Height	4.26 m
Wingspan	15.51 m

External dimensions
Length	56 ft
Height	14 ft
Wingspan	50.9 ft

External dimensions
Length	17.06 m
Height	4.26 m
Wingspan	15.51 m

Cabin dimensions
Length	5.39 m
Height	1.49 m
Width	1.55 m
Flat Floor	Yes

Cabin dimensions
Length	17.7 ft
Height	4.9 ft
Width	5.1 ft
Flat Floor	Yes

Cabin dimensions
Length	5.39 m
Height	1.49 m
Width	1.55 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	425 L
Internal Baggage Weight	68 kg
External Baggage Volume	1416 L
External Baggage Weight	227 kg

Luggage capacity
Internal Baggage Volume	15 ft³
Internal Baggage Weight	150 lb
External Baggage Volume	50 ft³
External Baggage Weight	500 lb

Luggage capacity
Internal Baggage Volume	425 L
Internal Baggage Weight	68 kg
External Baggage Volume	1416 L
External Baggage Weight	227 kg

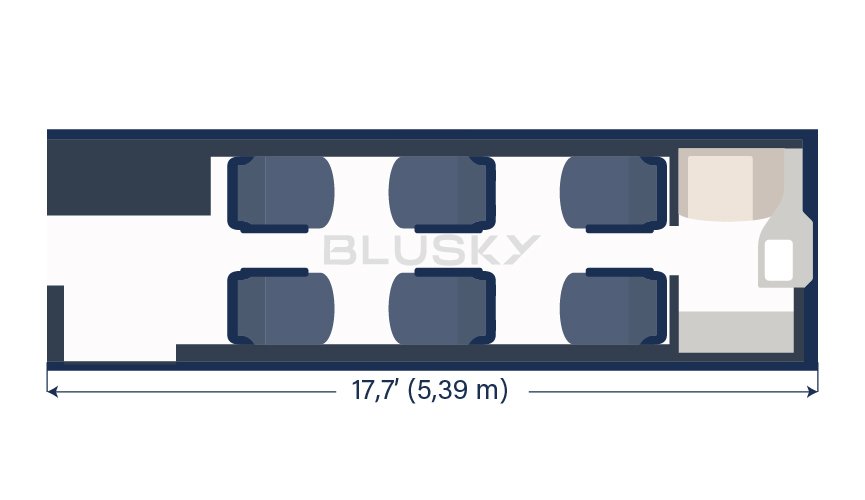

Floor Plan

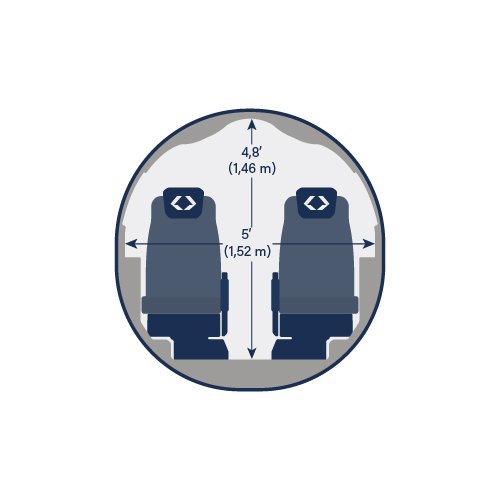

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Honeywell
Model	TFE731-40BR
Thrust	3850 lb
TBO	6000h
Flat Rating	ISA+23°C

Weights and limits
Maximum Takeoff Weight	9752 kg
Maximum Payload	953 kg
Maximum Fuel Capacity	2750 kg
Payload with Full Fuel	811 kg
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Weights and limits
Maximum Takeoff Weight	21500 lb
Maximum Payload	2100 lb
Maximum Fuel Capacity	6062 lb
Payload with Full Fuel	1788 lb
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Weights and limits
Maximum Takeoff Weight	9752 kg
Maximum Payload	953 kg
Maximum Fuel Capacity	2750 kg
Payload with Full Fuel	811 kg
Maximum Operating Speed	Mach 0.81
Cabin Pressure Differential	9.4 psi

Speeds
Long-Range Cruise	809 km/h
High-Speed Cruise	837 km/h

Speeds
Long-Range Cruise	437 kt
High-Speed Cruise	452 kt

Speeds
Long-Range Cruise	809 km/h
High-Speed Cruise	837 km/h

Consumption
Long-Range Cruise	440 kg/h
High-Speed Cruise	490 kg/h

Consumption
Long-Range Cruise	970 lb/h
High-Speed Cruise	1080 lb/h

Consumption
Long-Range Cruise	440 kg/h
High-Speed Cruise	490 kg/h

Performance

Range	2045 mn
Takeoff Distance - Sea Level	1353 m
Takeoff Distance - Hot and High	1552 m
Landing Distance	709 m
Maximum Operating Altitude	15545 m

Range	2045 mn
Takeoff Distance - Sea Level	4440 ft
Takeoff Distance - Hot and High	5091 ft
Landing Distance	2326 ft
Maximum Operating Altitude	51000 ft

Range	2045 mn
Takeoff Distance - Sea Level	1353 m
Takeoff Distance - Hot and High	1552 m
Landing Distance	709 m
Maximum Operating Altitude	51000 ft

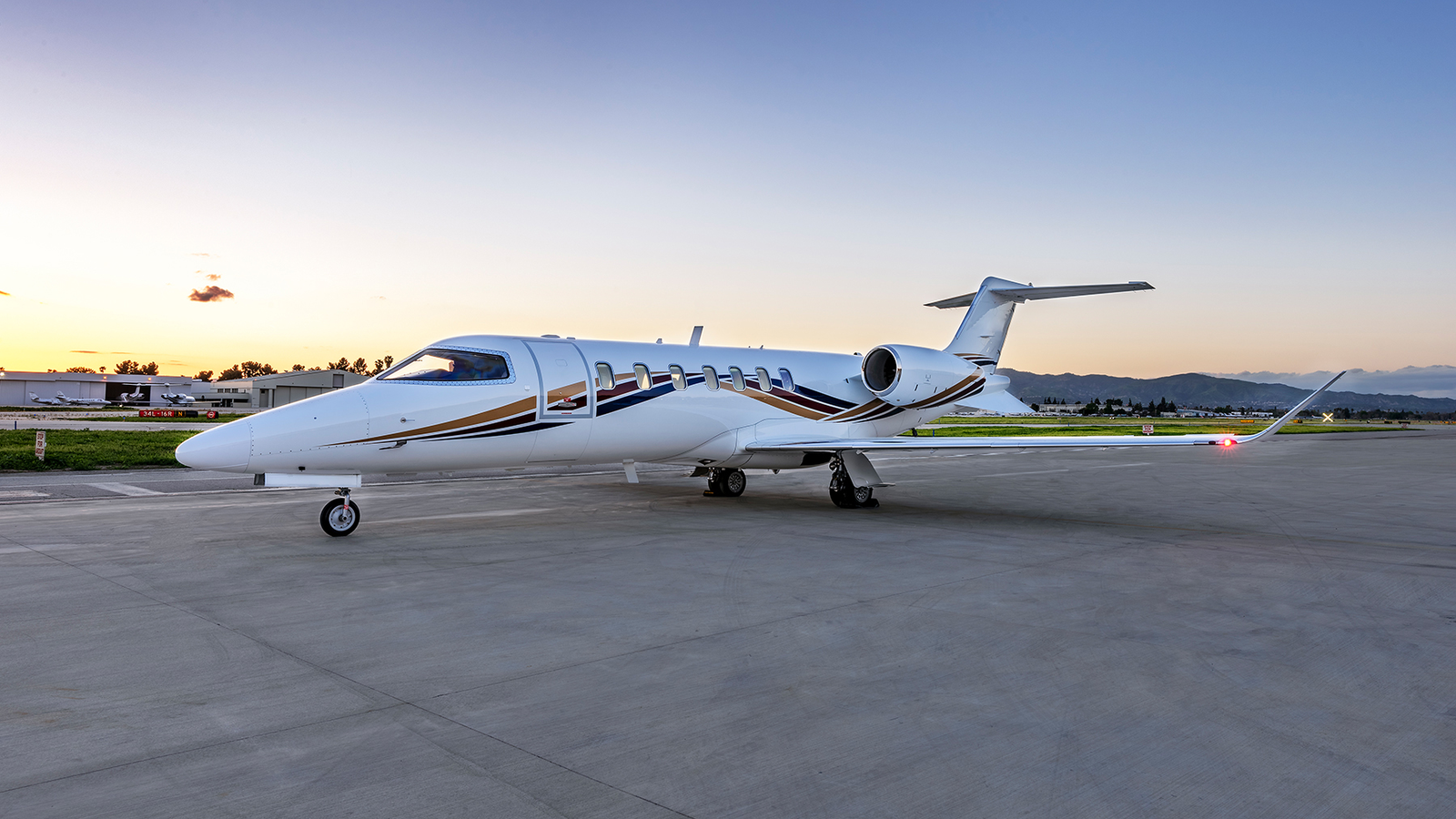

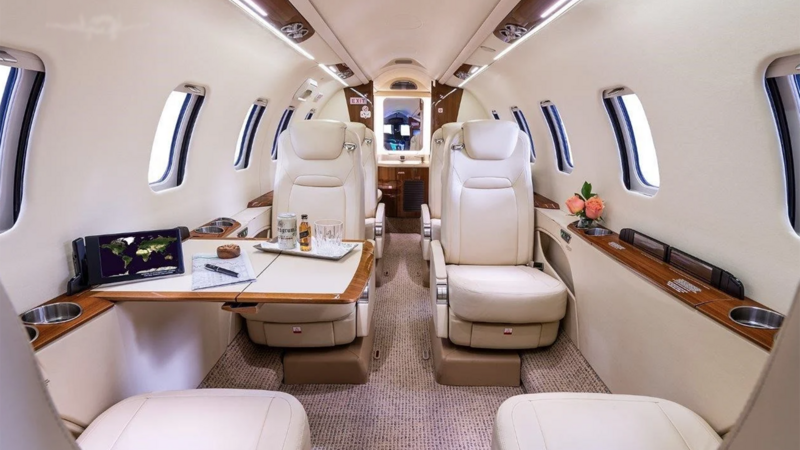

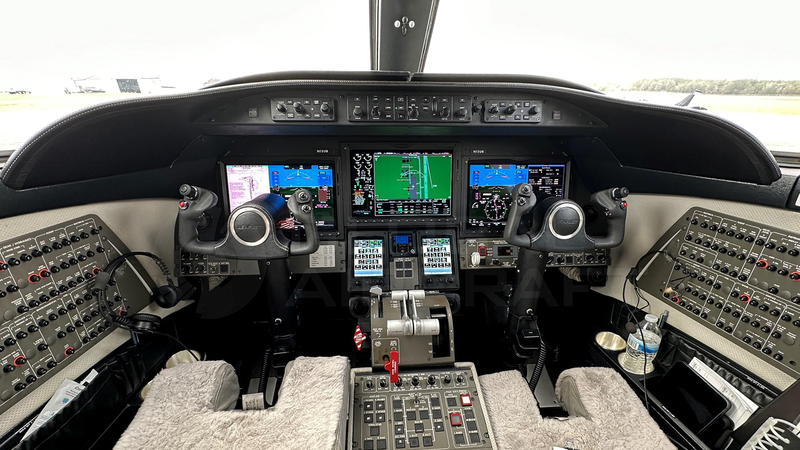

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6,000 nm - 8 passengers for aircraft with a range over 6,000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
