Cessna Citation CJ2 – Blusky

Cessna

Citation CJ2

Production Years 2000 - 2006

Aircraft Produced 243

Active Fleet 233

Fleet in Brazil 16

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	7
Maximum Passenger Capacity	8
Single Pilot	Yes

External dimensions
Length	14.54 m
Height	4.27 m
Wingspan	15.18 m

External dimensions
Length	47.7 ft
Height	14 ft
Wingspan	49.8 ft

External dimensions
Length	14.54 m
Height	4.27 m
Wingspan	15.18 m

Cabin dimensions
Length	4.15 m
Height	1.46 m
Width	1.46 m
Flat Floor	No

Cabin dimensions
Length	13.6 ft
Height	4.8 ft
Width	4.8 ft
Flat Floor	No

Cabin dimensions
Length	4.15 m
Height	1.46 m
Width	1.46 m
Flat Floor	No

Luggage capacity
Internal Baggage Volume	113 L
Internal Baggage Weight Capacity	45 kg
External Baggage Volume	1982 L
External Baggage Weight Capacity	454 kg

Luggage capacity
Internal Baggage Volume	4 ft³
Internal Baggage Weight Capacity	100 lb
External Baggage Volume	70 ft³
External Baggage Weight Capacity	1000 lb

Luggage capacity
Internal Baggage Volume	113 L
Internal Baggage Weight Capacity	45 kg
External Baggage Volume	1982 L
External Baggage Weight Capacity	454 kg

Floor Plan

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Williams
Model	FJ44-2C
Thrust	2400 lb
TBO	4000h/5000h
Flat Rating	ISA+7°C

Weights and limits
Maximum Takeoff Weight	6067 kg
Maximum Payload	680 kg
Maximum Fuel Capacity	1783 kg
Payload with Full Fuel	349 kg
Maximum Operating Speed	0.72 Mach
Cabin Pressure Differential	61.4 psi

Weights and limits
Maximum Takeoff Weight	13375 lb
Maximum Payload	1500 lb
Maximum Fuel Capacity	3930 lb
Payload with Full Fuel	770 lb
Maximum Operating Speed	0.72 Mach
Cabin Pressure Differential	61.4 psi

Weights and limits
Maximum Takeoff Weight	6067 kg
Maximum Payload	680 kg
Maximum Fuel Capacity	1783 kg
Payload with Full Fuel	349 kg
Maximum Operating Speed	0.72 Mach
Cabin Pressure Differential	61.4 psi

Speeds
Long-Range Cruise	650 km/h
High-Speed Cruise	754 km/h

Speeds
Long-Range Cruise	351 kt
High-Speed Cruise	407 kt

Speeds
Long-Range Cruise	650 km/h
High-Speed Cruise	754 km/h

Consumption
Long-Range Cruise	267 kg/h
High-Speed Cruise	484 kg/h

Consumption
Long-Range Cruise	589 lb/h
High-Speed Cruise	1068 lb/h

Consumption
Long-Range Cruise	267 kg/h
High-Speed Cruise	484 kg/h

Performance

Range	1511 mn
Takeoff Distance - Sea Level	1042 m
Takeoff Distance - Hot and High	1548 m
Landing Distance	798 m
Maximum Operating Altitude	13716 m

Range	1511 mn
Takeoff Distance - Sea Level	3420 ft
Takeoff Distance - Hot and High	5080 ft
Landing Distance	2619 ft
Maximum Operating Altitude	45000 ft

Range	1511 mn
Takeoff Distance - Sea Level	1042 m
Takeoff Distance - Hot and High	1548 m
Landing Distance	798 m
Maximum Operating Altitude	45000 ft

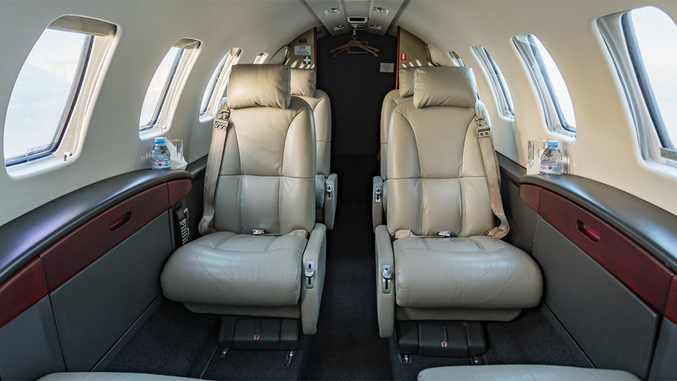

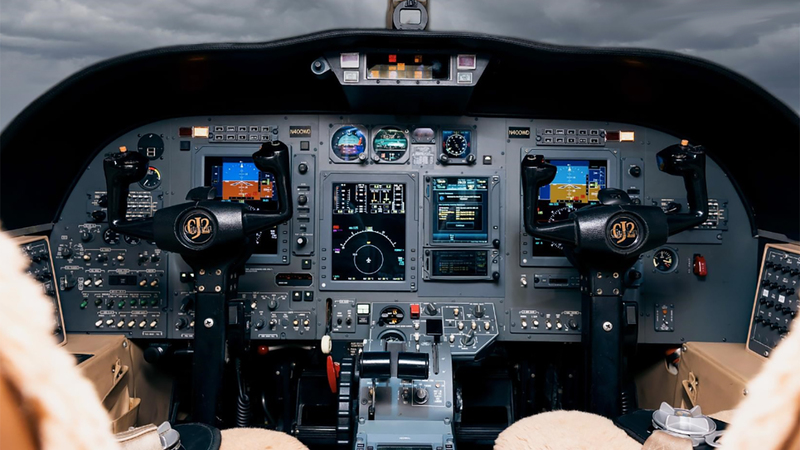

Photos

Legend and Premises

Range	Passengers: - 4 pax for aircraft with a range of up to 6,000 nm. - 8 pax for aircraft with a range greater than 6,000 nm. Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft. - 200 nm for FAR Part 25 aircraft. ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes only one pilot.
Interior Cabin Length	For jets, measured from the partition between the cockpit and cabin to the location typically occupied by the lavatory and/or the aftmost passenger.
Payload	Passengers + Fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Introduced in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the interior cabin height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which the engine maintains its maximum rated output.
