Cessna Citation Jet – Blusky

Cessna

Citation Jet

Production Years 1993 - 2000

Total Aircraft Produced 359

Active Fleet 334

Fleet in Brazil 41

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	6
Maximum Passenger Capacity	7
Single Pilot	Yes

External dimensions
Length	12.98 m
Height	4.21 m
Wingspan	14.26 m

External dimensions
Length	42.6 ft
Height	13.8 ft
Wingspan	46.8 ft

External dimensions
Length	12.98 m
Height	4.21 m
Wingspan	14.26 m

Cabin dimensions
Length	3.35 m
Height	1.46 m
Width	1.46 m
Flat Floor	No

Cabin dimensions
Length	11 ft
Height	4.8 ft
Width	4.8 ft
Flat Floor	No

Cabin dimensions
Length	3.35 m
Height	1.46 m
Width	1.46 m
Flat Floor	No

Luggage capacity
Internal Baggage Volume	113 L
Internal Baggage Weight Capacity	45 kg
External Baggage Volume	1444 L
External Baggage Weight Capacity	329 kg

Luggage capacity
Internal Baggage Volume	4 ft³
Internal Baggage Weight Capacity	100 lb
External Baggage Volume	51 ft³
External Baggage Weight Capacity	725 lb

Luggage capacity
Internal Baggage Volume	113 L
Internal Baggage Weight Capacity	45 kg
External Baggage Volume	1444 L
External Baggage Weight Capacity	329 kg

Floor Plan

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Williams
Model	FJ44-1A
Thrust	1900 lb
TBO	3500h
Flat Rating	ISA+7°C

Weights and limits
Maximum Takeoff Weight	4717 kg
Maximum Payload	748 kg
Maximum Fuel Capacity	1461 kg
Payload with Full Fuel	240 kg
Maximum Operating Speed	0.70 Mach
Cabin Pressure Differential	8.5 psi

Weights and limits
Maximum Takeoff Weight	10400 lb
Maximum Payload	1650 lb
Maximum Fuel Capacity	3220 lb
Payload with Full Fuel	530 lb
Maximum Operating Speed	0.70 Mach
Cabin Pressure Differential	8.5 psi

Weights and limits
Maximum Takeoff Weight	4717 kg
Maximum Payload	748 kg
Maximum Fuel Capacity	1461 kg
Payload with Full Fuel	240 kg
Maximum Operating Speed	0.70 Mach
Cabin Pressure Differential	8.5 psi

Speeds
Long-Range Cruise	598 km/h
High-Speed Cruise	700 km/h

Speeds
Long-Range Cruise	323 kt
High-Speed Cruise	378 kt

Speeds
Long-Range Cruise	598 km/h
High-Speed Cruise	700 km/h

Consumption
Long-Range Cruise	256 kg/h
High-Speed Cruise	375 kg/h

Consumption
Long-Range Cruise	564 lb/h
High-Speed Cruise	826 lb/h

Consumption
Long-Range Cruise	256 kg/h
High-Speed Cruise	375 kg/h

Performance

Range	1099 mn
Takeoff Distance - Sea Level	939 m
Takeoff Distance - Hot and High	1740 m
Landing Distance	751 m
Maximum Operating Altitude	12497 m

Range	1099 mn
Takeoff Distance - Sea Level	3080 ft
Takeoff Distance - Hot and High	5710 ft
Landing Distance	2465 ft
Maximum Operating Altitude	41000 ft

Range	1099 mn
Takeoff Distance - Sea Level	939 m
Takeoff Distance - Hot and High	1740 m
Landing Distance	751 m
Maximum Operating Altitude	41000 ft

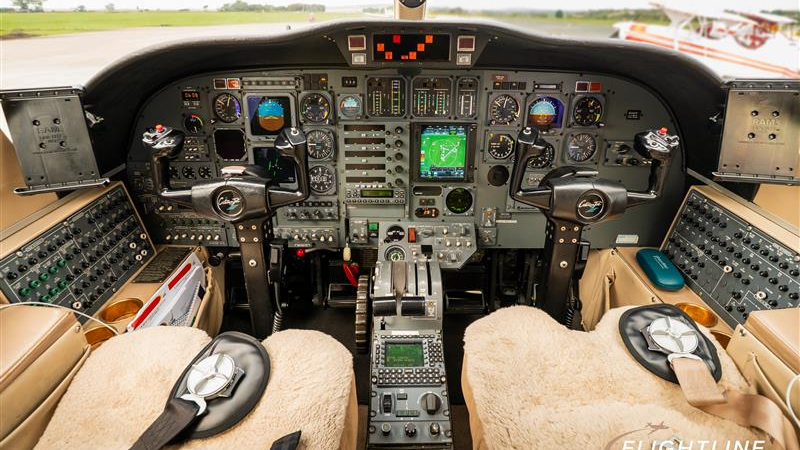

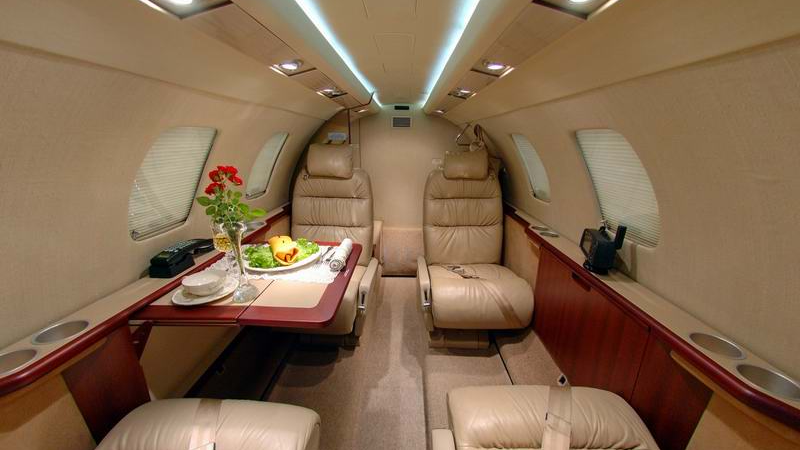

Photos

Legend and Premises

Range	Passengers: - 4 pax for aircraft with a range of up to 6,000 nm. - 8 pax for aircraft with a range greater than 6,000 nm. Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft. - 200 nm for FAR Part 25 aircraft. ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes only one pilot.
Interior Cabin Length	For jets, measured from the partition between the cockpit and cabin to the location typically occupied by the lavatory and/or the aftmost passenger.
Payload	Passengers + Fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Introduced in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the interior cabin height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which the engine maintains its maximum rated output.
