Dassault Falcon 6X – Blusky

Dassault

Falcon 6X

Production Years 2024 - Present

Aircraft Produced 25

Active Fleet 11

Fleet in Brazil -

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	12
Maximum Passenger Capacity	16
Single Pilot	No

External dimensions
Length	25.69 m
Height	7.47 m
Wingspan	25.94 m

External dimensions
Length	84.3 ft
Height	24.5 ft
Wingspan	85.1 ft

External dimensions
Length	25.69 m
Height	7.47 m
Wingspan	25.94 m

Cabin dimensions
Length	12.28 m
Height	1.98 m
Width	2.59 m
Flat Floor	Yes

Cabin dimensions
Length	40.3 ft
Height	6.5 ft
Width	8.5 ft
Flat Floor	Yes

Cabin dimensions
Length	12.28 m
Height	1.98 m
Width	2.59 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	4389 L
Internal Baggage Weight	1002 kg
External Baggage Volume	227 L
External Baggage Weight	42 kg

Luggage capacity
Internal Baggage Volume	155 ft³
Internal Baggage Weight	2210 lb
External Baggage Volume	8 ft³
External Baggage Weight	92 lb

Luggage capacity
Internal Baggage Volume	4389 L
Internal Baggage Weight	1002 kg
External Baggage Volume	227 L
External Baggage Weight	42 kg

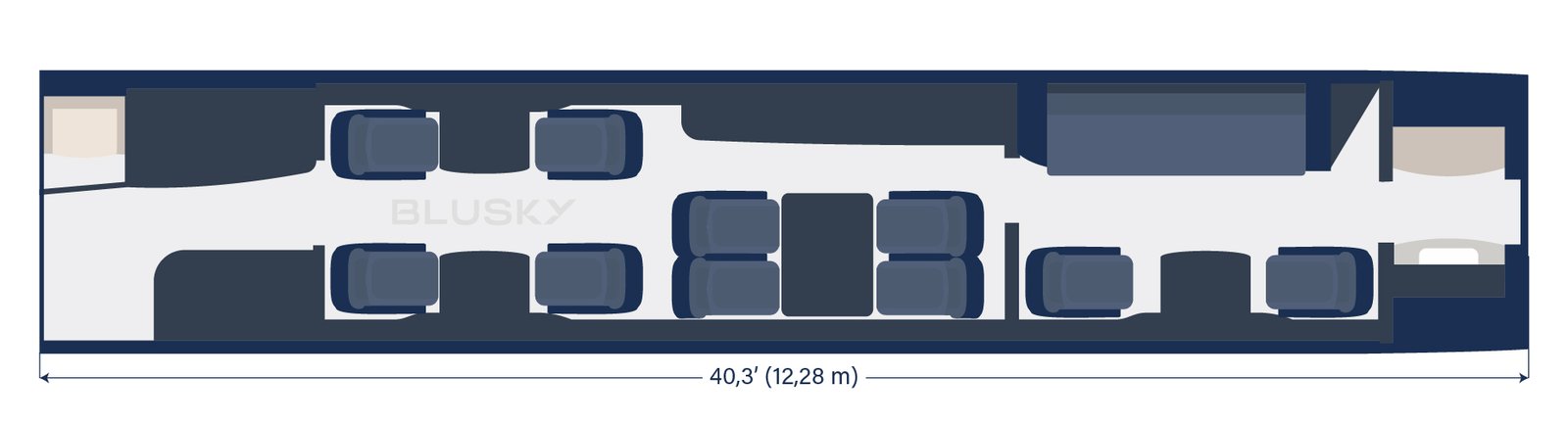

Floor Plan

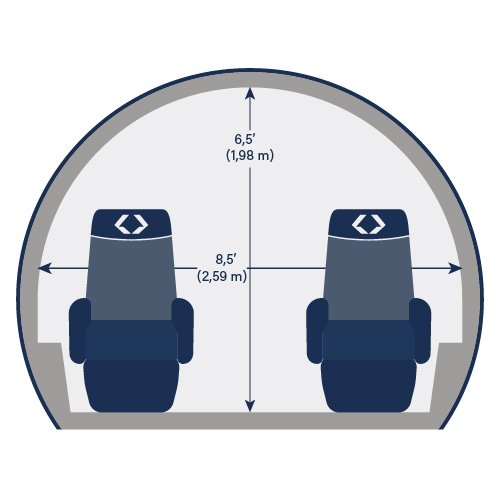

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Pratt & Whitney
Model	PW812D
Thrust	13500 lb
TBO	On Condition
Flat Rating	ISA+20°C

Weights and limits
Maximum Takeoff Weight	35153 kg
Maximum Payload	2041 kg
Maximum Fuel Capacity	15331 kg
Payload with Full Fuel	1225 kg
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.4 psi

Weights and limits
Maximum Takeoff Weight	77500 lb
Maximum Payload	4500 lb
Maximum Fuel Capacity	33800 lb
Payload with Full Fuel	2700 lb
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.4 psi

Weights and limits
Maximum Takeoff Weight	35153 kg
Maximum Payload	2041 kg
Maximum Fuel Capacity	15331 kg
Payload with Full Fuel	1225 kg
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.4 psi

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	924 km/h

Speeds
Long-Range Cruise	459 kt
High-Speed Cruise	499 kt

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	924 km/h

Consumption
Long-Range Cruise	1111 kg/h
High-Speed Cruise	1501 kg/h

Consumption
Long-Range Cruise	2450 lb/h
High-Speed Cruise	3310 lb/h

Consumption
Long-Range Cruise	1111 kg/h
High-Speed Cruise	1501 kg/h

Performance

Range	5580 mn
Takeoff Distance - Sea Level	1559 m
Takeoff Distance - Hot and High	2060 m
Landing Distance	738 m
Maximum Operating Altitude	15545 m

Range	5580 mn
Takeoff Distance - Sea Level	5115 ft
Takeoff Distance - Hot and High	6760 ft
Landing Distance	2420 ft
Maximum Operating Altitude	51000 ft

Range	5580 mn
Takeoff Distance - Sea Level	1559 m
Takeoff Distance - Hot and High	2060 m
Landing Distance	738 m
Maximum Operating Altitude	51000 ft

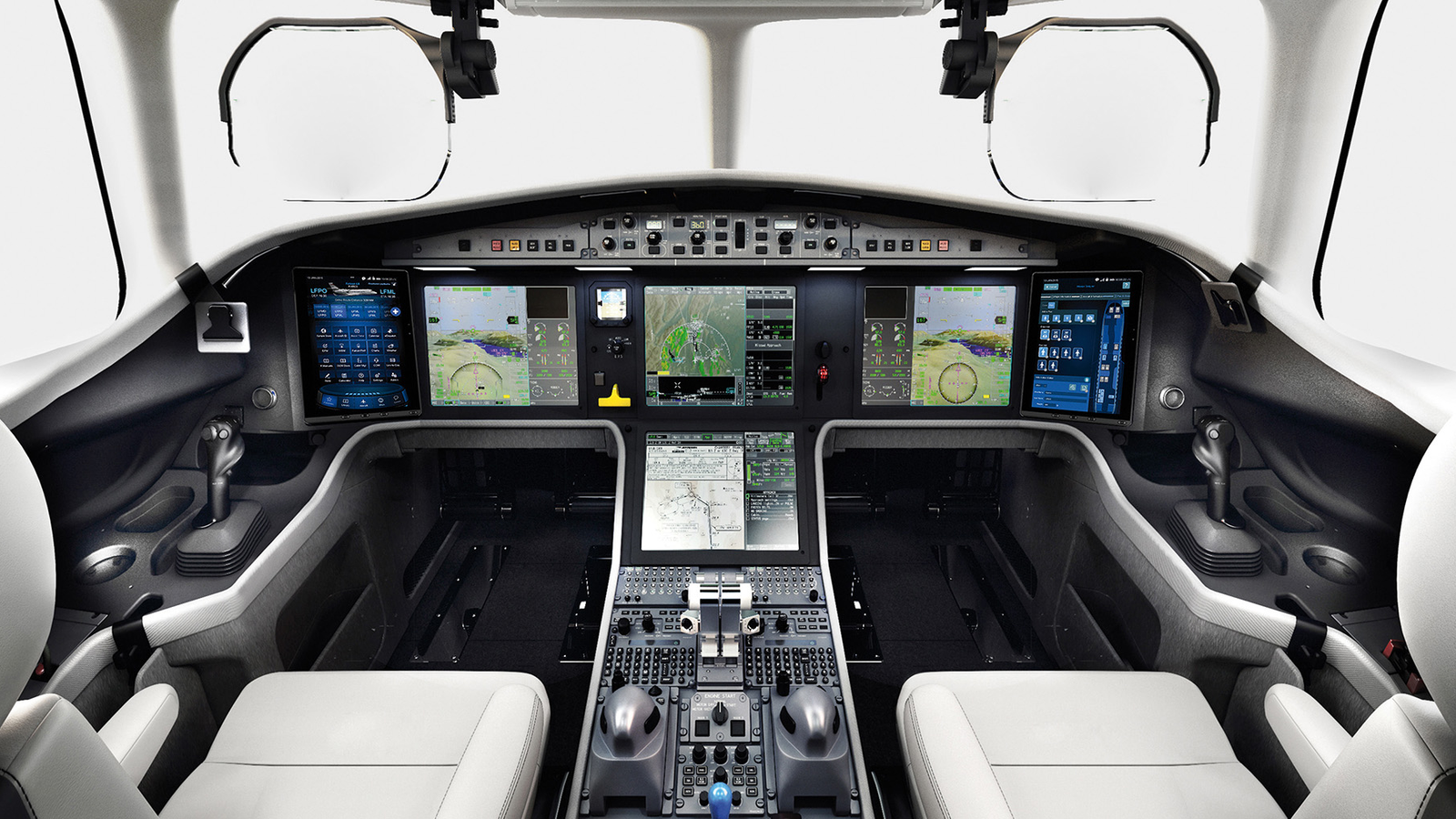

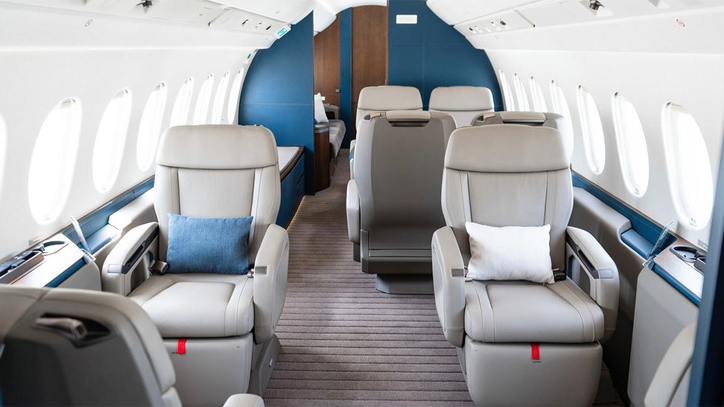

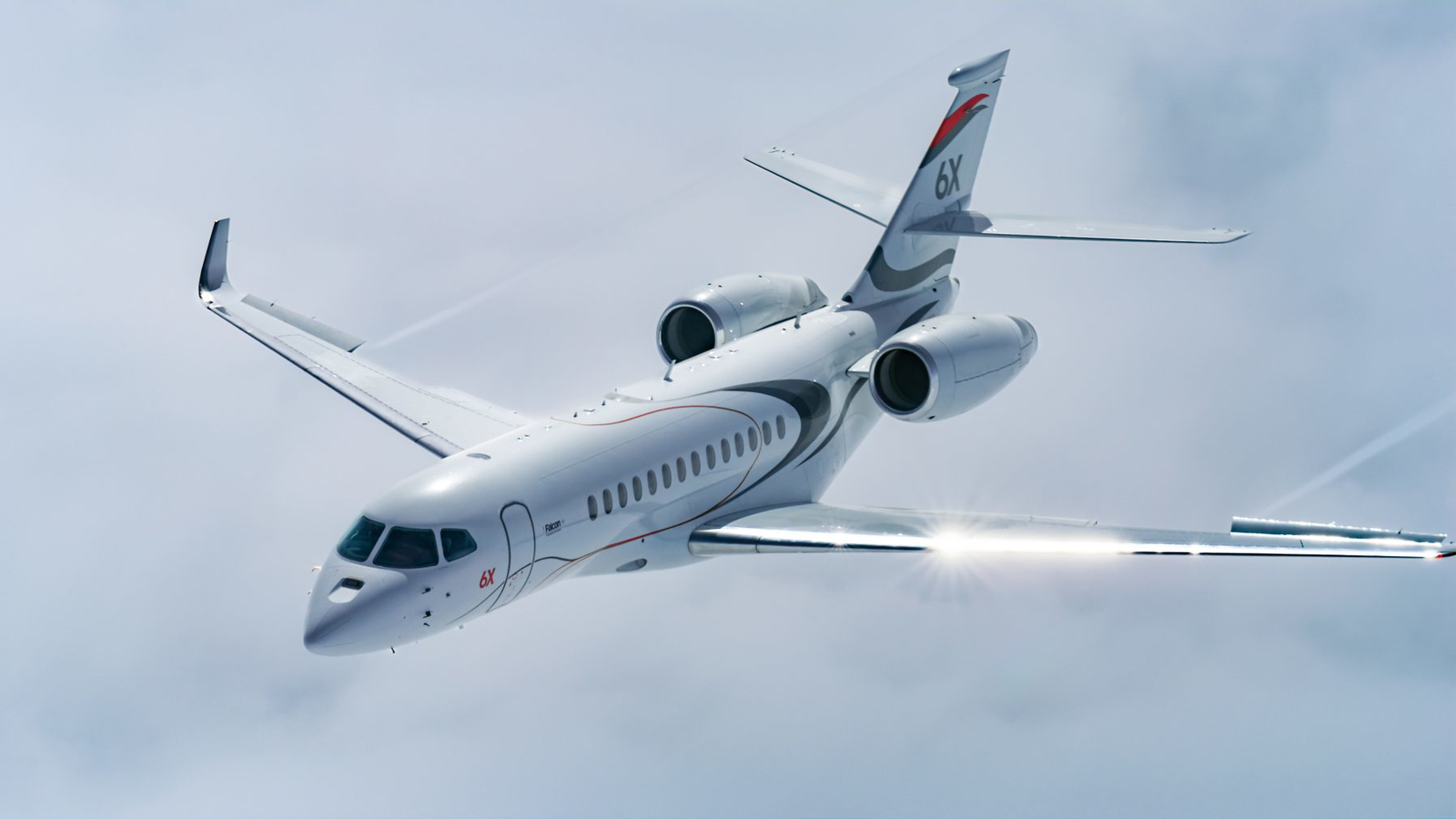

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6,000 nm - 8 passengers for aircraft with a range over 6,000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
