Dassault Falcon 8X – Blusky

Dassault

Falcon 8X

Production Years 2015 - Present

Aircraft Produced 119

Active Fleet 111

Fleet in Brazil -

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	12
Maximum Passenger Capacity	16
Single Pilot	No

External dimensions
Length	24.44 m
Height	7.96 m
Wingspan	26.3 m

External dimensions
Length	80.2 ft
Height	26.1 ft
Wingspan	86.3 ft

External dimensions
Length	24.44 m
Height	7.96 m
Wingspan	26.3 m

Cabin dimensions
Length	13.01 m
Height	1.89 m
Width	2.35 m
Flat Floor	Yes

Cabin dimensions
Length	42.7 ft
Height	6.2 ft
Width	7.7 ft
Flat Floor	Yes

Cabin dimensions
Length	13.01 m
Height	1.89 m
Width	2.35 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	3964 L
Internal Baggage Weight	909 kg
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	140 ft³
Internal Baggage Weight	2004 lb
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	3964 L
Internal Baggage Weight	909 kg
External Baggage Volume	-
External Baggage Weight	-

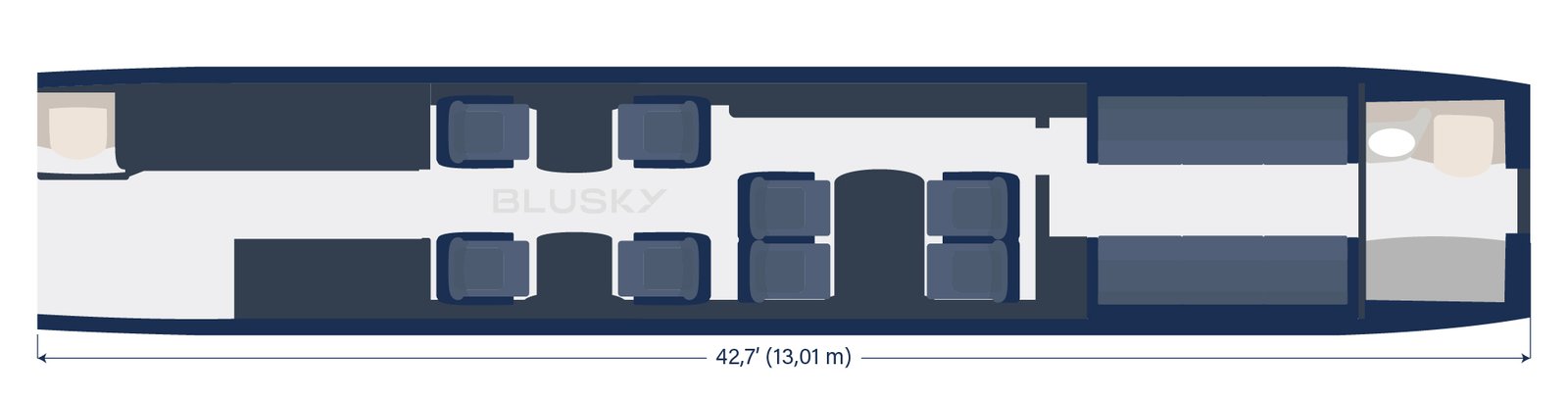

Floor Plan

Cabin cross section

Performance

Engines
Number	3
Manufacturer	Pratt & Whitney
Model	PW307D
Thrust	6722 lb
TBO	7200h
Flat Rating	ISA+17°C

Weights and limits
Maximum Takeoff Weight	33112 kg
Maximum Payload	1905 kg
Maximum Fuel Capacity	15940 kg
Payload with Full Fuel	571 kg
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	73000 lb
Maximum Payload	4200 lb
Maximum Fuel Capacity	35141 lb
Payload with Full Fuel	1259 lb
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	33112 kg
Maximum Payload	1905 kg
Maximum Fuel Capacity	15940 kg
Payload with Full Fuel	571 kg
Maximum Operating Speed	0.90 Mach
Cabin Pressure Differential	10.2 psi

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	920 km/h

Speeds
Long-Range Cruise	459 kt
High-Speed Cruise	497 kt

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	920 km/h

Consumption
Long-Range Cruise	1022 kg/h
High-Speed Cruise	1439 kg/h

Consumption
Long-Range Cruise	2254 lb/h
High-Speed Cruise	3172 lb/h

Consumption
Long-Range Cruise	1022 kg/h
High-Speed Cruise	1439 kg/h

Performance

Range	6235 mn
Takeoff Distance - Sea Level	1792 m
Takeoff Distance - Hot and High	2603 m
Landing Distance	684 m
Maximum Operating Altitude	15545 m

Range	6235 mn
Takeoff Distance - Sea Level	5880 ft
Takeoff Distance - Hot and High	8540 ft
Landing Distance	2245 ft
Maximum Operating Altitude	51000 ft

Range	6235 mn
Takeoff Distance - Sea Level	1792 m
Takeoff Distance - Hot and High	2603 m
Landing Distance	684 m
Maximum Operating Altitude	51000 ft

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6.000 nm - 8 passengers for aircraft with a range over 6.000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
