Gulfstream G200 – Blusky

Gulfstream

G200

Production Years 1999 - 2012

Aircraft Produced 248

Active Fleet 230

Fleet in Brazil 8

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	9
Maximum Passenger Capacity	10
Single Pilot	No

External dimensions
Length	18.99 m
Height	6.52 m
Wingspan	17.71 m

External dimensions
Length	62.3 ft
Height	21.4 ft
Wingspan	58.1 ft

External dimensions
Length	18.99 m
Height	6.52 m
Wingspan	17.71 m

Cabin dimensions
Length	7.44 m
Height	1.92 m
Width	2.19 m
Flat Floor	No

Cabin dimensions
Length	24.4 ft
Height	6.3 ft
Width	7.2 ft
Flat Floor	No

Cabin dimensions
Length	7.44 m
Height	1.92 m
Width	2.19 m
Flat Floor	No

Luggage capacity
Internal Baggage Volume	708 L
Internal Baggage Weight	166 kg
External Baggage Volume	3540 L
External Baggage Weight	898 kg

Luggage capacity
Internal Baggage Volume	25 ft³
Internal Baggage Weight	367 lb
External Baggage Volume	125 ft³
External Baggage Weight	1980 lb

Luggage capacity
Internal Baggage Volume	708 L
Internal Baggage Weight	166 kg
External Baggage Volume	3540 L
External Baggage Weight	898 kg

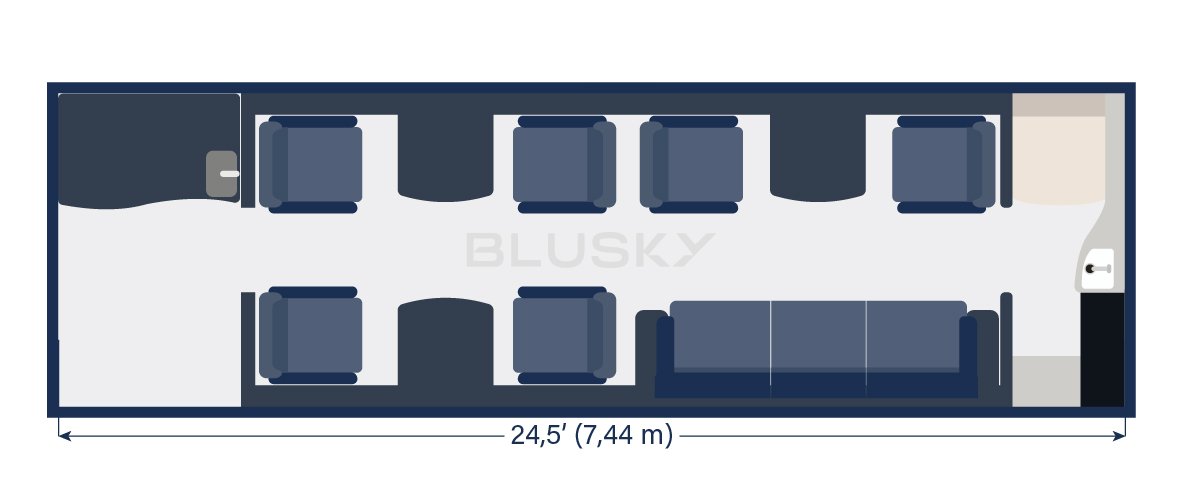

Floor Plan

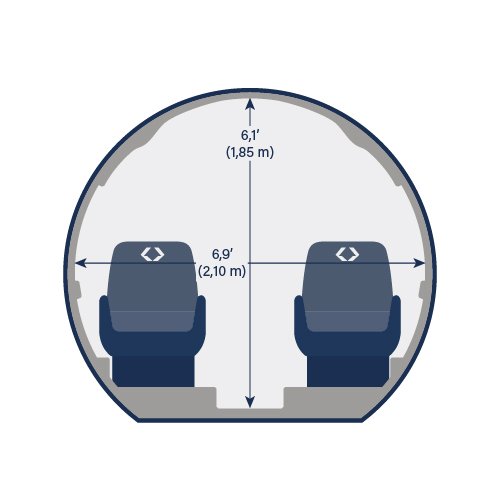

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Pratt & Whitney
Model	PW306A
Thrust	6040 lb
TBO	6000c
Flat Rating	ISA+17°C

Weights and limits
Maximum Takeoff Weight	16080 kg
Maximum Payload	1724 kg
Maximum Fuel Capacity	6804 kg
Payload with Full Fuel	181 kg
Maximum Operating Speed	Mach 0.85
Cabin Pressure Differential	8.8 psi

Weights and limits
Maximum Takeoff Weight	35450 lb
Maximum Payload	3800 lb
Maximum Fuel Capacity	15000 lb
Payload with Full Fuel	400 lb
Maximum Operating Speed	Mach 0.85
Cabin Pressure Differential	8.8 psi

Weights and limits
Maximum Takeoff Weight	16080 kg
Maximum Payload	1724 kg
Maximum Fuel Capacity	6804 kg
Payload with Full Fuel	181 kg
Maximum Operating Speed	Mach 0.85
Cabin Pressure Differential	8.8 psi

Speeds
Long-Range Cruise	796 km/h
High-Speed Cruise	870 km/h

Speeds
Long-Range Cruise	430 kt
High-Speed Cruise	470 kt

Speeds
Long-Range Cruise	796 km/h
High-Speed Cruise	870 km/h

Consumption
Long-Range Cruise	705 kg/h
High-Speed Cruise	937 kg/h

Consumption
Long-Range Cruise	1555 lb/h
High-Speed Cruise	2065 lb/h

Consumption
Long-Range Cruise	705 kg/h
High-Speed Cruise	937 kg/h

Performance

Range	3312 mn
Takeoff Distance - Sea Level	1854 m
Takeoff Distance - Hot and High	2683 m
Landing Distance	789 m
Maximum Operating Altitude	13716 m

Range	3312 mn
Takeoff Distance - Sea Level	6083 ft
Takeoff Distance - Hot and High	8804 ft
Landing Distance	2590 ft
Maximum Operating Altitude	45000 ft

Range	3312 mn
Takeoff Distance - Sea Level	1854 m
Takeoff Distance - Hot and High	2683 m
Landing Distance	789 m
Maximum Operating Altitude	45000 ft

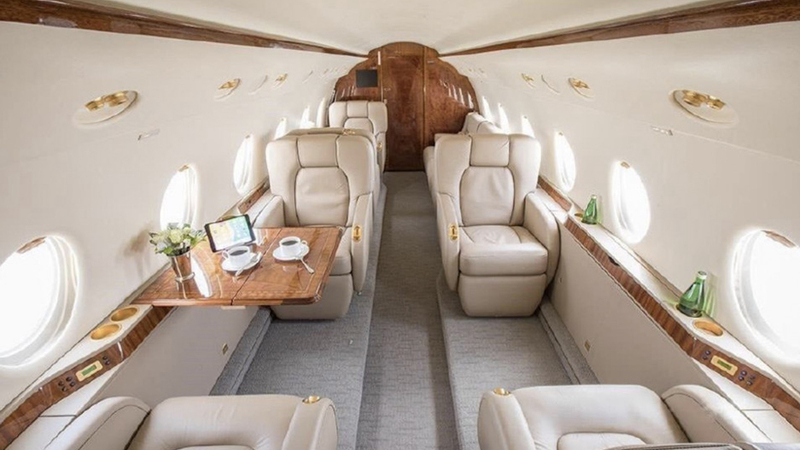

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6.000 nm - 8 passengers for aircraft with a range over 6.000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
