Gulfstream G500 – Blusky

Gulfstream

G500

Production Years 2017 - Present

Aircraft Produced 194

Active Fleet 194

Fleet in Brazil 1

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	13
Maximum Passenger Capacity	19
Single Pilot	No

External dimensions
Length	27.8 m
Height	7.77 m
Wingspan	26.3 m

External dimensions
Length	91.2 ft
Height	25.5 ft
Wingspan	86.3 ft

External dimensions
Length	27.8 m
Height	7.77 m
Wingspan	26.3 m

Cabin dimensions
Length	12.65 m
Height	1.89 m
Width	2.32 m
Flat Floor	Yes

Cabin dimensions
Length	41.5 ft
Height	6.2 ft
Width	7.6 ft
Flat Floor	Yes

Cabin dimensions
Length	12.65 m
Height	1.89 m
Width	2.32 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	4955 L
Internal Baggage Weight	1021 kg
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	175 ft³
Internal Baggage Weight	2250 lb
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	4955 L
Internal Baggage Weight	1021 kg
External Baggage Volume	-
External Baggage Weight	-

Floor Plan

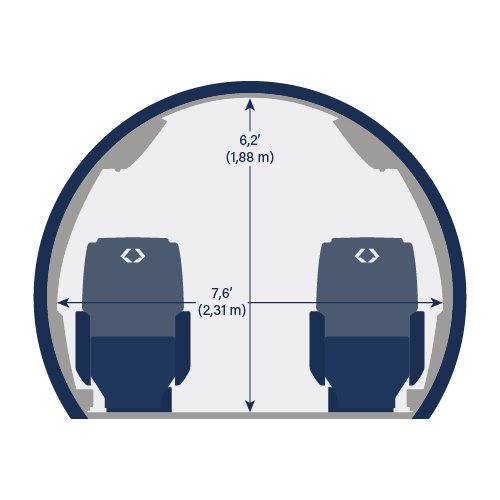

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Pratt & Whitney
Model	PW814GA
Thrust	15144 lb
TBO	On Condition
Flat Rating	ISA+15°C

Weights and limits
Maximum Takeoff Weight	36106 kg
Maximum Payload	2381 kg
Maximum Fuel Capacity	13721 kg
Payload with Full Fuel	1315 kg
Maximum Operating Speed	Mach 0.93
Cabin Pressure Differential	10.7 psi

Weights and limits
Maximum Takeoff Weight	79600 lb
Maximum Payload	5250 lb
Maximum Fuel Capacity	30250 lb
Payload with Full Fuel	2900 lb
Maximum Operating Speed	Mach 0.93
Cabin Pressure Differential	10.7 psi

Weights and limits
Maximum Takeoff Weight	36106 kg
Maximum Payload	2381 kg
Maximum Fuel Capacity	13721 kg
Payload with Full Fuel	1315 kg
Maximum Operating Speed	Mach 0.93
Cabin Pressure Differential	10.7 psi

Speeds
Long-Range Cruise	904 km/h
High-Speed Cruise	956 km/h

Speeds
Long-Range Cruise	488 kt
High-Speed Cruise	516 kt

Speeds
Long-Range Cruise	904 km/h
High-Speed Cruise	956 km/h

Consumption
Long-Range Cruise	1096 kg/h
High-Speed Cruise	1383 kg/h

Consumption
Long-Range Cruise	2417 lb/h
High-Speed Cruise	3048 lb/h

Consumption
Long-Range Cruise	1096 kg/h
High-Speed Cruise	1383 kg/h

Performance

Range	5408 mn
Takeoff Distance - Sea Level	1615 m
Takeoff Distance - Hot and High	2225 m
Landing Distance	806 m
Maximum Operating Altitude	15545 m

Range	5408 mn
Takeoff Distance - Sea Level	5300 ft
Takeoff Distance - Hot and High	7300 ft
Landing Distance	2645 ft
Maximum Operating Altitude	51000 ft

Range	5408 mn
Takeoff Distance - Sea Level	1615 m
Takeoff Distance - Hot and High	2225 m
Landing Distance	806 m
Maximum Operating Altitude	51000 ft

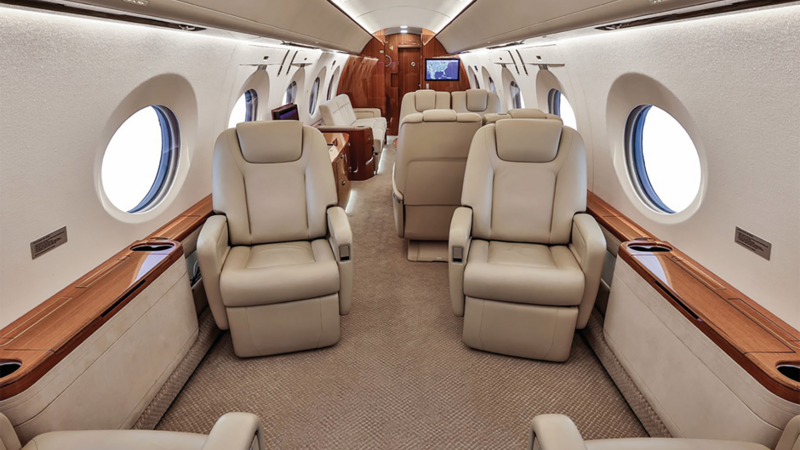

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6.000 nm - 8 passengers for aircraft with a range over 6.000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
