Gulfstream G550 – Blusky

Gulfstream

G550

Production Years 2003 - 2025

Aircraft Produced 622

Active Fleet 618

Fleet in Brazil 28

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	16
Maximum Passenger Capacity	19
Single Pilot	No

External dimensions
Length	29.38 m
Height	7.86 m
Wingspan	28.5 m

External dimensions
Length	96.4 ft
Height	25.8 ft
Wingspan	93.5 ft

External dimensions
Length	29.38 m
Height	7.86 m
Wingspan	28.5 m

Cabin dimensions
Length	12.98 m
Height	1.89 m
Width	2.23 m
Flat Floor	Yes

Cabin dimensions
Length	42.6 ft
Height	6.2 ft
Width	7.3 ft
Flat Floor	Yes

Cabin dimensions
Length	12.98 m
Height	1.89 m
Width	2.23 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	6400 L
Internal Baggage Weight	1134 kg
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	226 ft³
Internal Baggage Weight	2500 lb
External Baggage Volume	-
External Baggage Weight	-

Luggage capacity
Internal Baggage Volume	6400 L
Internal Baggage Weight	1134 kg
External Baggage Volume	-
External Baggage Weight	-

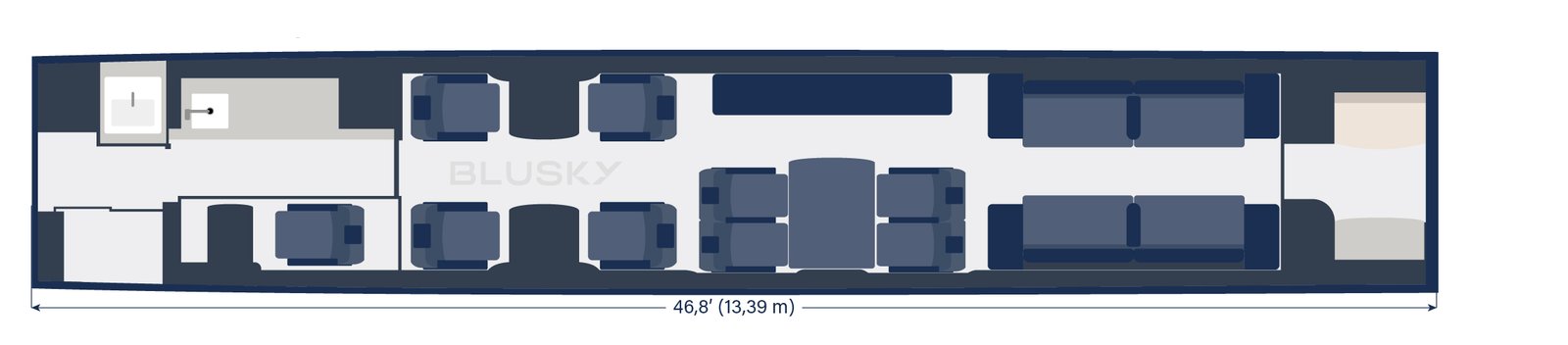

Floor Plan

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Rolls-Royce
Model	BR700-710C4-11
Thrust	15385 lb
TBO	On Condition
Flat Rating	ISA+15°C

Weights and limits
Maximum Takeoff Weight	41277 kg
Maximum Payload	2631 kg
Maximum Fuel Capacity	18595 kg
Payload with Full Fuel	774 kg
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	91000 lb
Maximum Payload	5800 lb
Maximum Fuel Capacity	40994 lb
Payload with Full Fuel	1706 lb
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	41277 kg
Maximum Payload	2631 kg
Maximum Fuel Capacity	18595 kg
Payload with Full Fuel	774 kg
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	904 km/h

Speeds
Long-Range Cruise	459 kt
High-Speed Cruise	488 kt

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	904 km/h

Consumption
Long-Range Cruise	1163 kg/h
High-Speed Cruise	1464 kg/h

Consumption
Long-Range Cruise	2563 lb/h
High-Speed Cruise	3228 lb/h

Consumption
Long-Range Cruise	1163 kg/h
High-Speed Cruise	1464 kg/h

Performance

Range	6708 mn
Takeoff Distance - Sea Level	1801 m
Takeoff Distance - Hot and High	2765 m
Landing Distance	683 m
Maximum Operating Altitude	15545 m

Range	6708 mn
Takeoff Distance - Sea Level	5910 ft
Takeoff Distance - Hot and High	9070 ft
Landing Distance	2240 ft
Maximum Operating Altitude	51000 ft

Range	6708 mn
Takeoff Distance - Sea Level	1801 m
Takeoff Distance - Hot and High	2765 m
Landing Distance	683 m
Maximum Operating Altitude	51000 ft

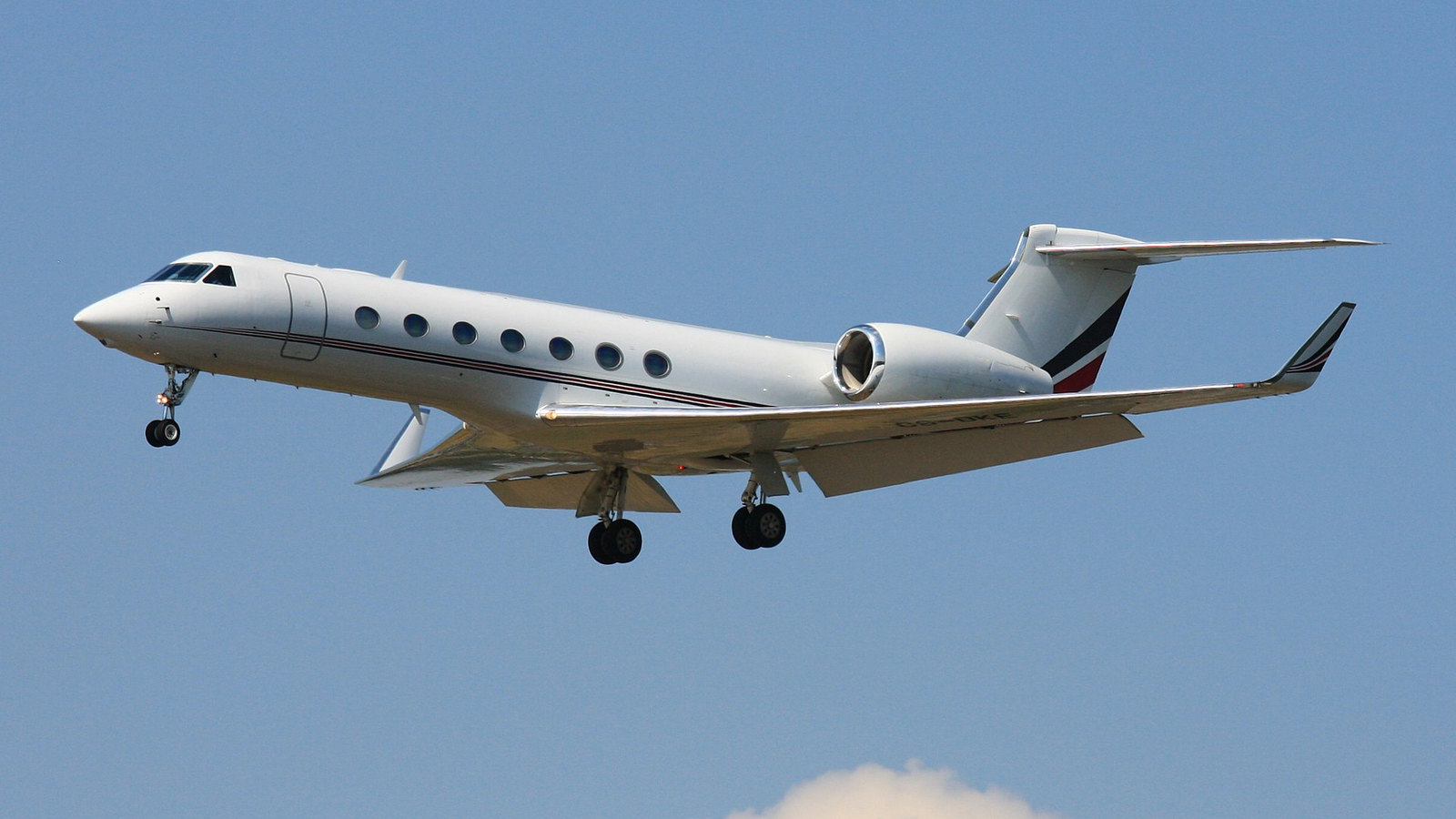

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6.000 nm - 8 passengers for aircraft with a range over 6.000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
