Gulfstream GV – Blusky

Gulfstream

GV

Production Years 1996 - 2006

Aircraft Produced 194

Active Fleet 187

Fleet in Brazil 0

Measurement System:

Aircraft Cabin and Dimensions

Pilots and passengers
Typical Passenger Capacity	14
Maximum Passenger Capacity	18
Single Pilot	No

External dimensions
Length	29.38 m
Height	7.86 m
Wingspan	28.5 m

External dimensions
Length	96.4 ft
Height	25.8 ft
Wingspan	93.5 ft

External dimensions
Length	29.38 m
Height	7.86 m
Wingspan	28.5 m

Cabin dimensions
Length	13.38 m
Height	1.89 m
Width	2.23 m
Flat Floor	Yes

Cabin dimensions
Length	43.9 ft
Height	6.2 ft
Width	7.3 ft
Flat Floor	Yes

Cabin dimensions
Length	13.38 m
Height	1.89 m
Width	2.23 m
Flat Floor	Yes

Luggage capacity
Internal Baggage Volume	6400 L
Internal Baggage Weight	1134 kg
External Baggage Volume	- L
External Baggage Weight	- kg

Luggage capacity
Internal Baggage Volume	226 ft³
Internal Baggage Weight	2500 lb
External Baggage Volume	- ft³
External Baggage Weight	- lb

Luggage capacity
Internal Baggage Volume	6400 L
Internal Baggage Weight	1134 kg
External Baggage Volume	- L
External Baggage Weight	- kg

Floor Plan

Cabin cross section

Performance

Engines
Number	2
Manufacturer	Rolls-Royce
Model	BR 710A1-10
Thrust	14750 lb
TBO	On Condition
Flat Rating	ISA+20ºC

Weights and limits
Maximum Takeoff Weight	41050 kg
Maximum Payload	2767 kg
Maximum Fuel Capacity	18595 kg
Payload with Full Fuel	683 kg
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	90500 lb
Maximum Payload	6100 lb
Maximum Fuel Capacity	40994 lb
Payload with Full Fuel	1506 lb
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Weights and limits
Maximum Takeoff Weight	41050 kg
Maximum Payload	2767 kg
Maximum Fuel Capacity	18595 kg
Payload with Full Fuel	683 kg
Maximum Operating Speed	Mach 0.89
Cabin Pressure Differential	10.2 psi

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	904 km/h

Speeds
Long-Range Cruise	459 kt
High-Speed Cruise	488 kt

Speeds
Long-Range Cruise	850 km/h
High-Speed Cruise	904 km/h

Consumption
Long-Range Cruise	1179 kg/h
High-Speed Cruise	1433 kg/h

Consumption
Long-Range Cruise	2599 lb/h
High-Speed Cruise	3160 lb/h

Consumption
Long-Range Cruise	1179 kg/h
High-Speed Cruise	1433 kg/h

Performance

Range	6425 mn
Takeoff Distance - Sea Level	1862 m
Takeoff Distance - Hot and High	2789 m
Landing Distance	677 m
Maximum Operating Altitude	15545 m

Range	6425 mn
Takeoff Distance - Sea Level	6110 ft
Takeoff Distance - Hot and High	9150 ft
Landing Distance	2220 ft
Maximum Operating Altitude	51000 ft

Range	6425 mn
Takeoff Distance - Sea Level	1862 m
Takeoff Distance - Hot and High	2789 m
Landing Distance	677 m
Maximum Operating Altitude	51000 ft

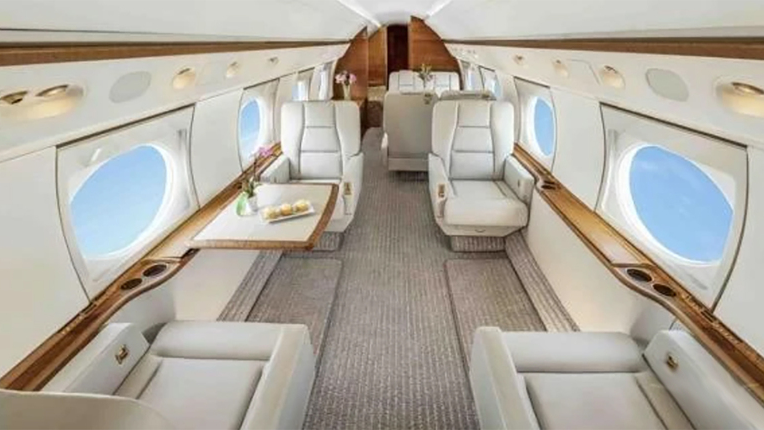

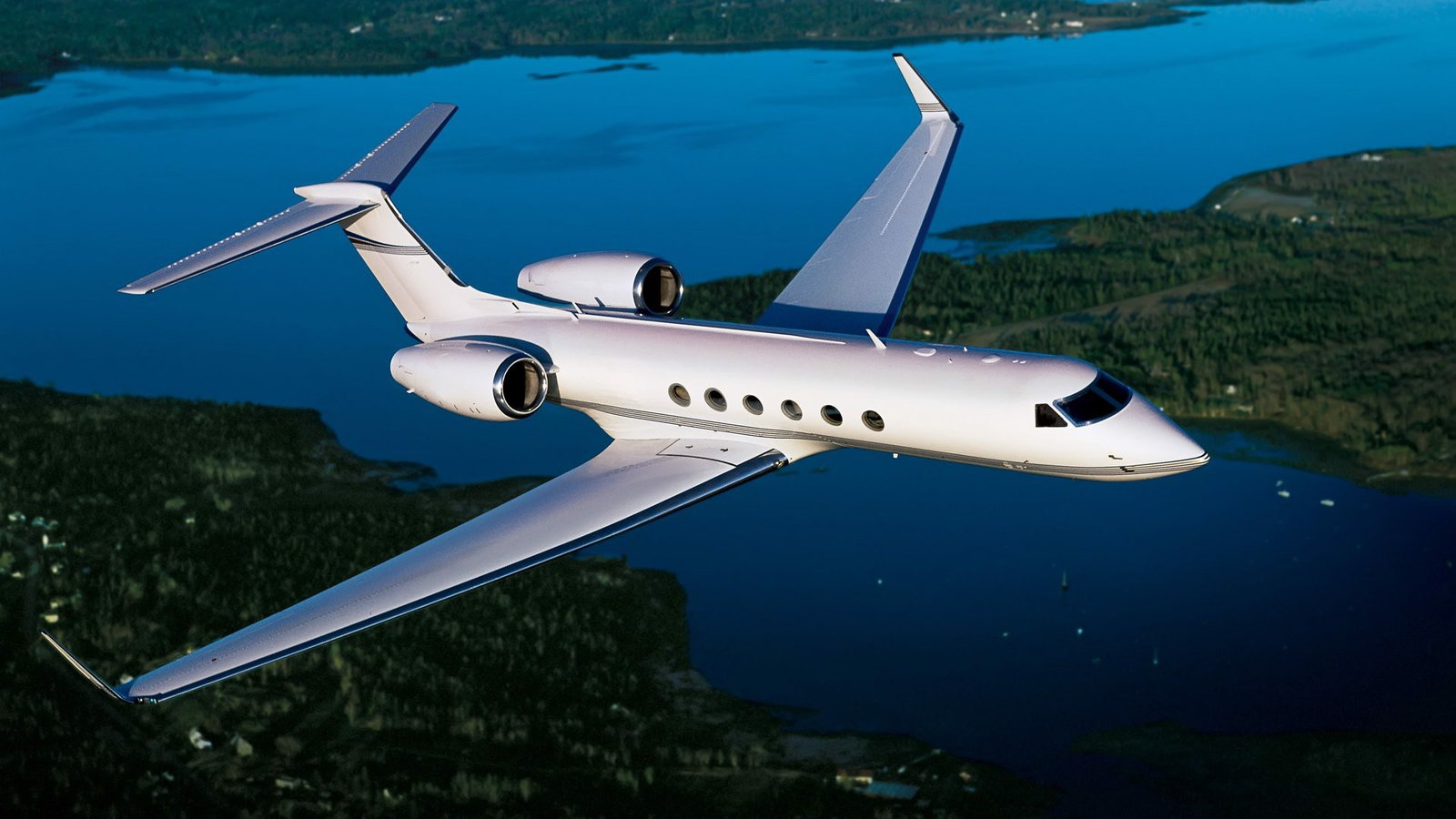

Photos

Legend and Premises

Range	Passengers: - 4 passengers for aircraft with a range of up to 6.000 nm - 8 passengers for aircraft with a range over 6.000 nm Fuel reserves: NBAA IFR, with an alternate airport at: - 100 nm for FAR Part 23 aircraft - 200 nm for FAR Part 25 aircraft ISA temperature en route.
Interior Cabin Height	Measured at the center of the cabin cross-section.
Passenger Capacity	For single-pilot aircraft, passenger capacity assumes one pilot.
Interior Cabin Length	For jets, measured from the cockpit/cabin partition to the typical location of the lavatory and/or the rearmost passenger seat.
Payload	Passengers + fuel.
Takeoff Distance - Hot and High	At a 5,000 ft elevation airport and a 25°C temperature (ISA +20°C).
Takeoff Distance - Sea Level	At a sea-level airport and a 15°C temperature (ISA).
Legacy 600	Launched in 2003 with a flat floor. In 2008, the aisle between the seats was lowered, increasing the cabin interior height by 5 cm.
TBO (Time Between Overhauls)	Aircraft with two TBO numbers have Williams engines, which have a longer interval when enrolled in the manufacturer’s engine program.
Flat Rating	Maximum temperature at which maximum engine power is maintained without degradation.
